Fiber Dyeing Machine

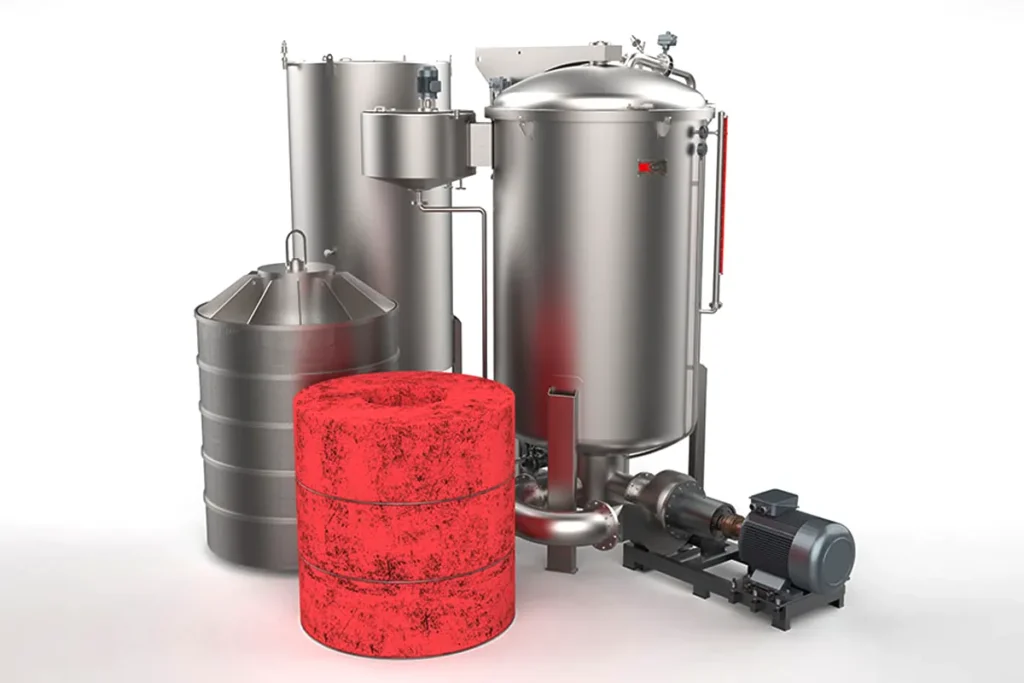

The Cedit Fiber Dyeing Machine is used for dyeing synthetic and cellulosic fiber yarns.

The machine performs painting using circulation provided by a pump under an air cushion. Compressed air exerts static pressure on the liquid fluid. The air cushion allows for a lower float ratio and chemical usage. It also prevents heat loss due to the insulating properties of air. Energy and water consumption are reduced, resulting in significant savings.

The machine features a stainless steel heating and cooling coil. Circulation is provided by a specially designed pump mounted on the machine. The internal and external working mechanism of the machine is provided by a specially designed pneumatically driven guide mounted on the pump housing. This guide ensures precise and pulsation-free fluid flow. Our fiber dyeing machine operates in one direction only.

The lids close with automatic pistons, ensuring a perfect seal. Thanks to these pistons, the opening, closing, and locking of the lid are completed in a short time.
